WX22-18PS cap-type slip ring provides 18-way 2A current transmission capacity with compact design. The core adopts industrial-grade AWG26# Teflon wire, which is anti-oxidation and has a service life of over 2 million revolutions. It is suitable for cost-sensitive projects such as educational robots and small rotating booths.
WX22-18PS cap-type slip ring product features
1. The cap-type slip ring is designed to solve the pain point of cable winding in rotating equipment, supports stable transmission of wires/signal lines in continuous rotation, and completely eliminates the risk of winding failure.
2. Integrated injection molding, the slip ring size is 22mm outer diameter and 31.9mm length.
3. Imported PBT engineering plastic, wear-resistant, pressure-resistant, high-temperature-resistant, corrosion-resistant, and aging-resistant.
4. Cluster brush-type gold-plated brush wire, better conductivity and signal transmission.
5. Adopt AWG26# Teflon wire, which is resistant to strong oxidants and corrosion, has a long service life and strong electrical insulation performance.
6. The product has passed CE, ROHS and other certifications.
WX22-18PS cap-type slip ring Performance parameters
| Parameter name | Parameter Value |
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥500MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～240VDC/VAC |
| Wire Specifications | 26AWG Teflon wire |
| Wire length | Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
WX22-18PS cap-type slip ring Product Dimensions

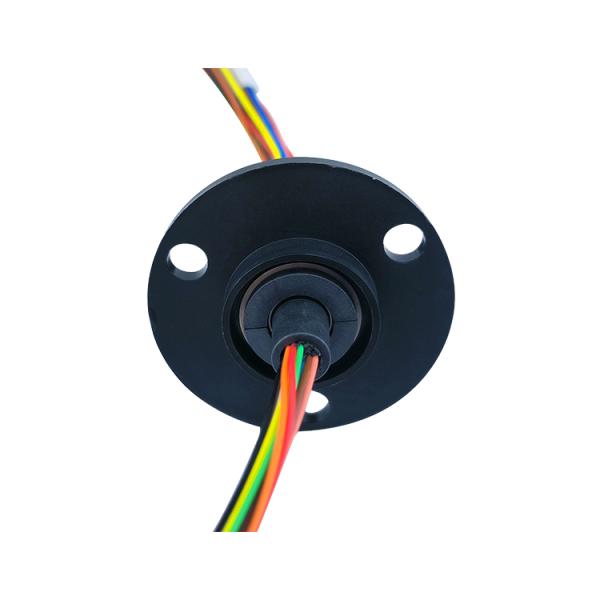

WX22-18PS cap-type slip ring Product images
WX22-18PS cap-type slip ring application
WX22-18PS cap-type slip ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
