Two In Two Out Gas Rotary Union Can Pass Various Gases 360 Degree Rotation

Name: Two In Two Out Gas Rotary Union Can Pass Various Gases 360 Degree Rotation
Brand: GuRen
Price: 19 USD

China Two In Two Out Gas Rotary Union Can Pass Various Gases 360 Degree Rotation wholesale

Brand Name : GuRen

Model Number : Q2P03

Certification : ISO9001.CE.RoHS

Place of Origin : china

MOQ : 1

Price : ＄19-199

Payment Terms : L/C,D/P,T/T

Supply Ability : 1K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Circuit Number : 2 circuits

Inner diameter : 18mm

Outer diameter : 86mm

High : 100mm

Sealing Type : O-Ring

Service Life : 20 million rotations

Contact Now

Two-in-two-out Rotary Gas Joint G3/8 Interface

High-performance rotary joint capable of passing various gases with continuous 360-degree rotation capability.

Product Specifications

Attribute	Value
Circuit Number	2 circuits
Inner diameter	18mm
Outer diameter	86mm
Height	100mm
Sealing Type	O-Ring
Service Life	20 million rotations

Product Overview

The Q2P03 rotary air joint features an aluminum alloy shell with imported bearings for 360-degree continuous high-speed rotation up to 250 RPM. Its dual-channel design enables independent operation of two gas lines.

Key Features

18mm inner hole design compatible with air slip rings below 18mm diameter
Multiple fixed holes for convenient slip ring installation
Hard anodized aluminum alloy shell with surface hardness reaching HV500
Japanese THK precision bearings with nano-coated shaft core, tested lifespan exceeding 20 million revolutions at 300 RPM

Technical Parameters

Parameter	Value
Transmission medium	Gas (liquid available by customization)
Working life	20 million revolutions (reference value)
Maximum speed	300 RPM
Pressure range	-90KPa to 1MPa or vacuum
Operating temperature	-30℃ to +80℃
Operating humidity	0-85% RH
Protection level	IP51
Shell material	Aluminum Alloy
Rotational torque	0.5N.m (reference value, torque increases with channel count)

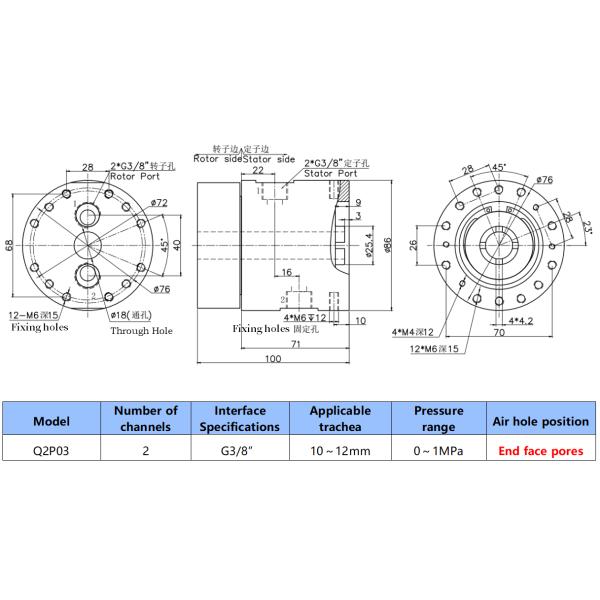

Product Dimensions

Two In Two Out Gas Rotary Union Can Pass Various Gases 360 Degree Rotation

Application Scenarios

Ideal for applications requiring 360-degree continuous rotation with uninterrupted gas pressure, vacuum, power, and signal transmission. Common uses include:

Non-standard automation equipment
Lithium battery and mobile phone testing equipment
Laser equipment and coating machines
Packaging film equipment for soft-pack batteries
Electronic semiconductor industrial automation
Optoelectronic display manufacturing equipment
Rotary worktables and wind power equipment
AGV lifting platforms and capsule filling machines
